Crest - Faction, Reputation and Composed Heraldry for GameMaker

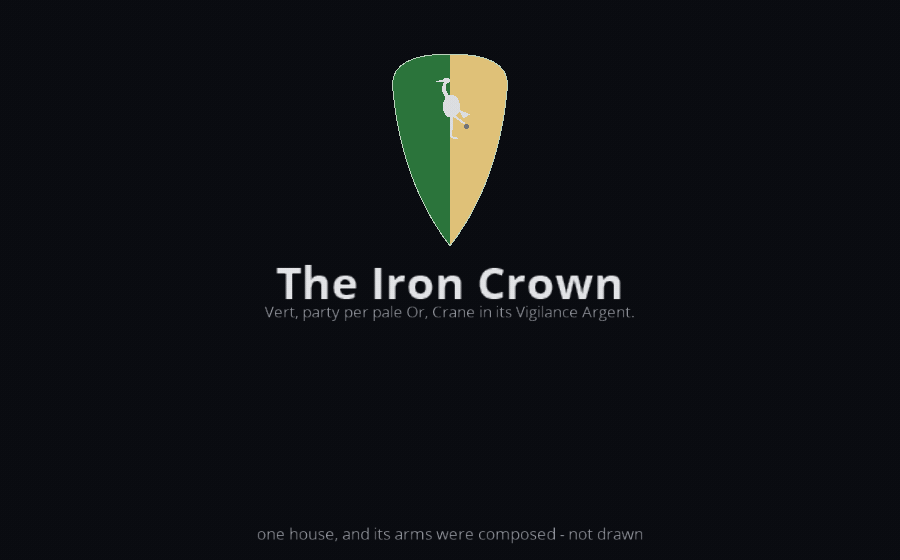

Register a faction. It arrives with a coat of arms nobody drew.

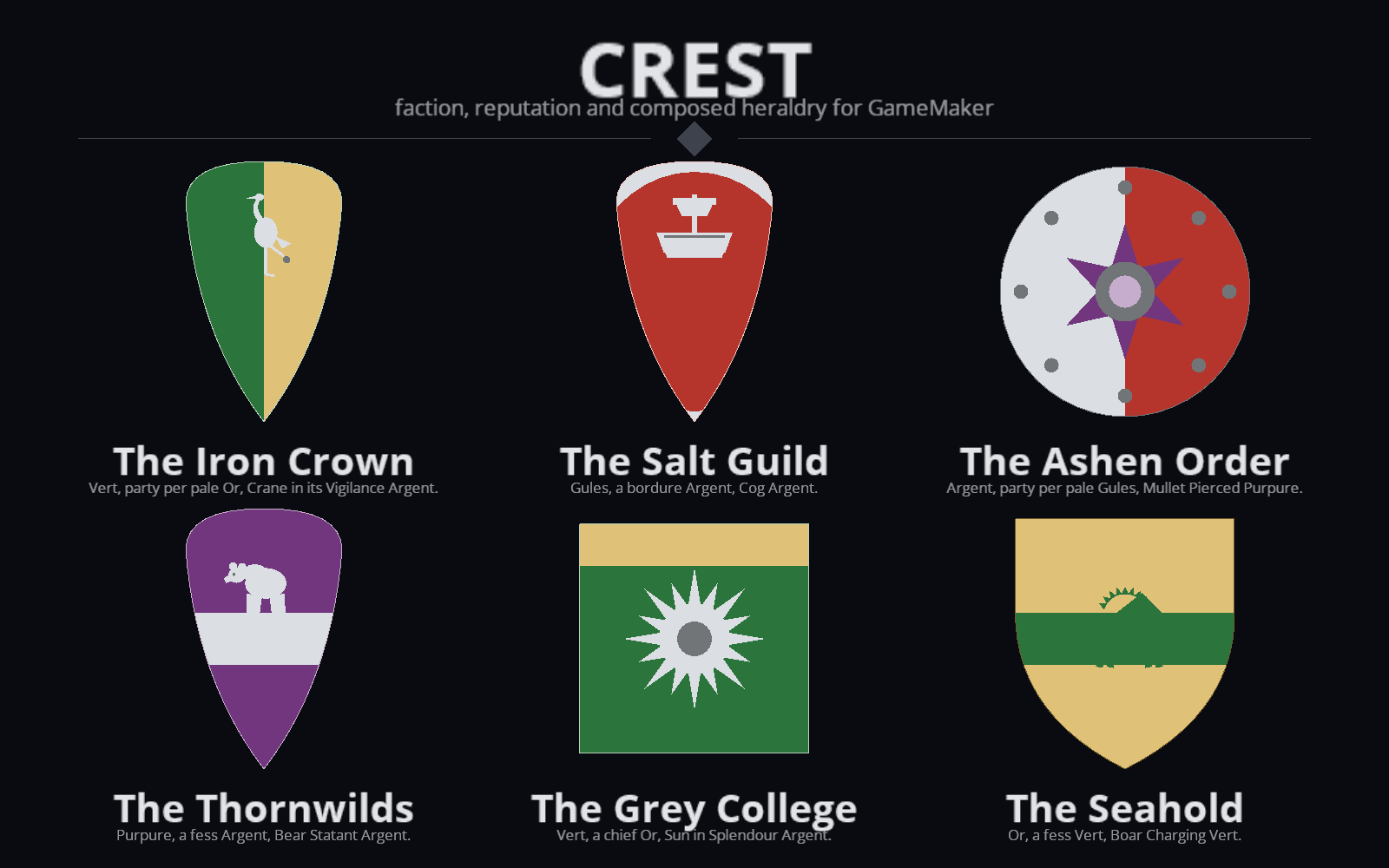

crs_faction_add("guild", "The Salt Guild", ["merchant", "coastal"]);

That house now has a banner, a standing, a tier, relations and a seat in the panel — composed from its own identity, in pure GML, with no sprite, no atlas and no texture page anywhere in the package.

The part a generator cannot do

You can already download a free coat-of-arms generator. It gives you a picture. Then you still owe your game everything that makes a faction a faction — and a new picture, drawn by hand, for every house you add after launch.

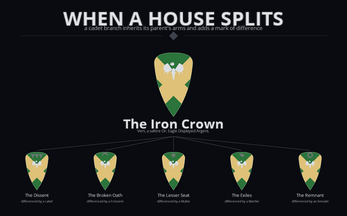

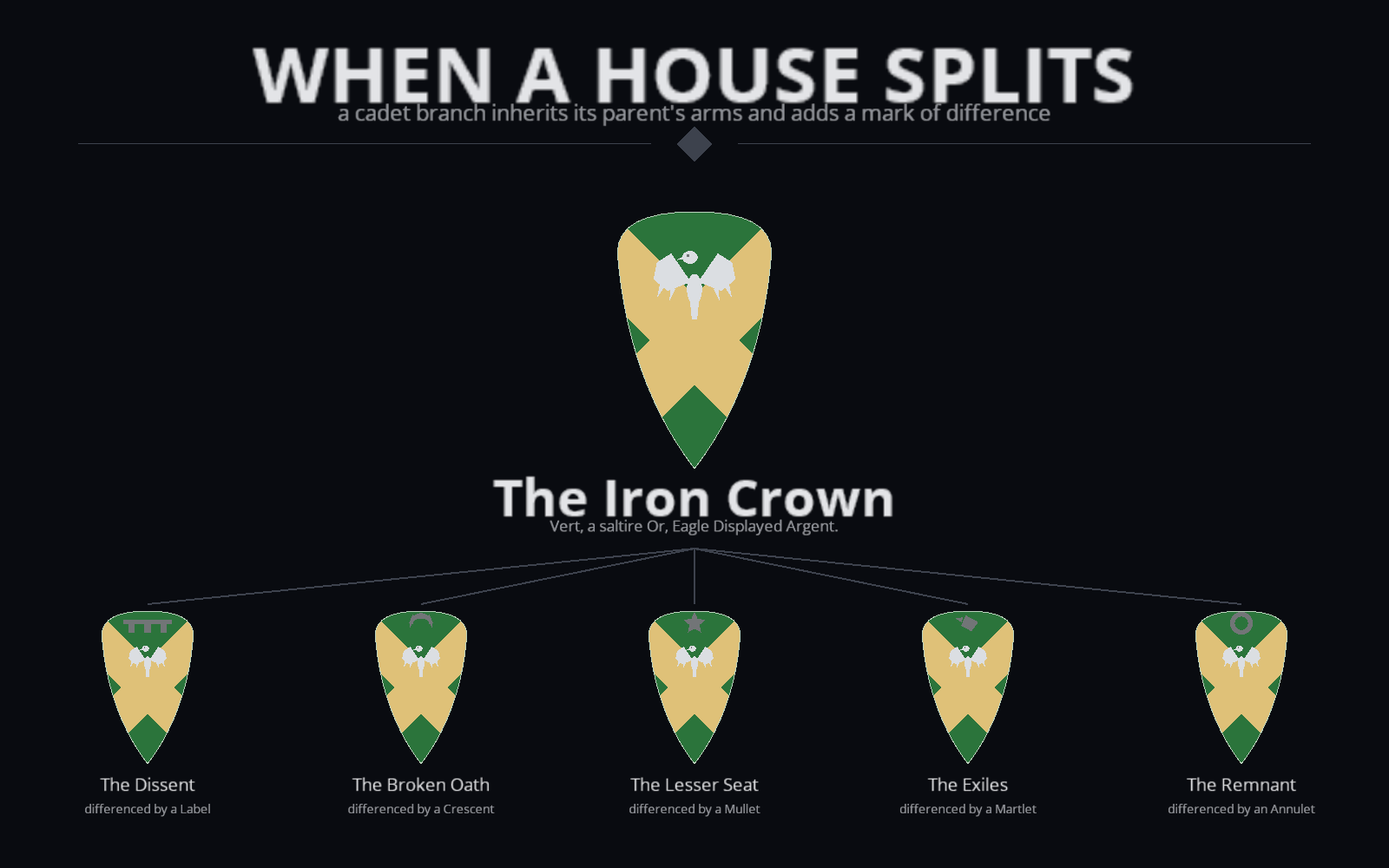

When a house splinters, the cadet branch inherits its parent's arms unchanged and adds one mark of difference, the way real heraldry says "same blood, junior line":

crs_faction_schism("crown", "crown_cadet0", "The Exiles", 0.5);

Your player reads the relationship off the banner before a line of dialogue explains it. That works because arms here are a struct derived from a faction, not an image — inheriting them is a copy and the difference is one field. A generator that hands you a PNG cannot do it at all.

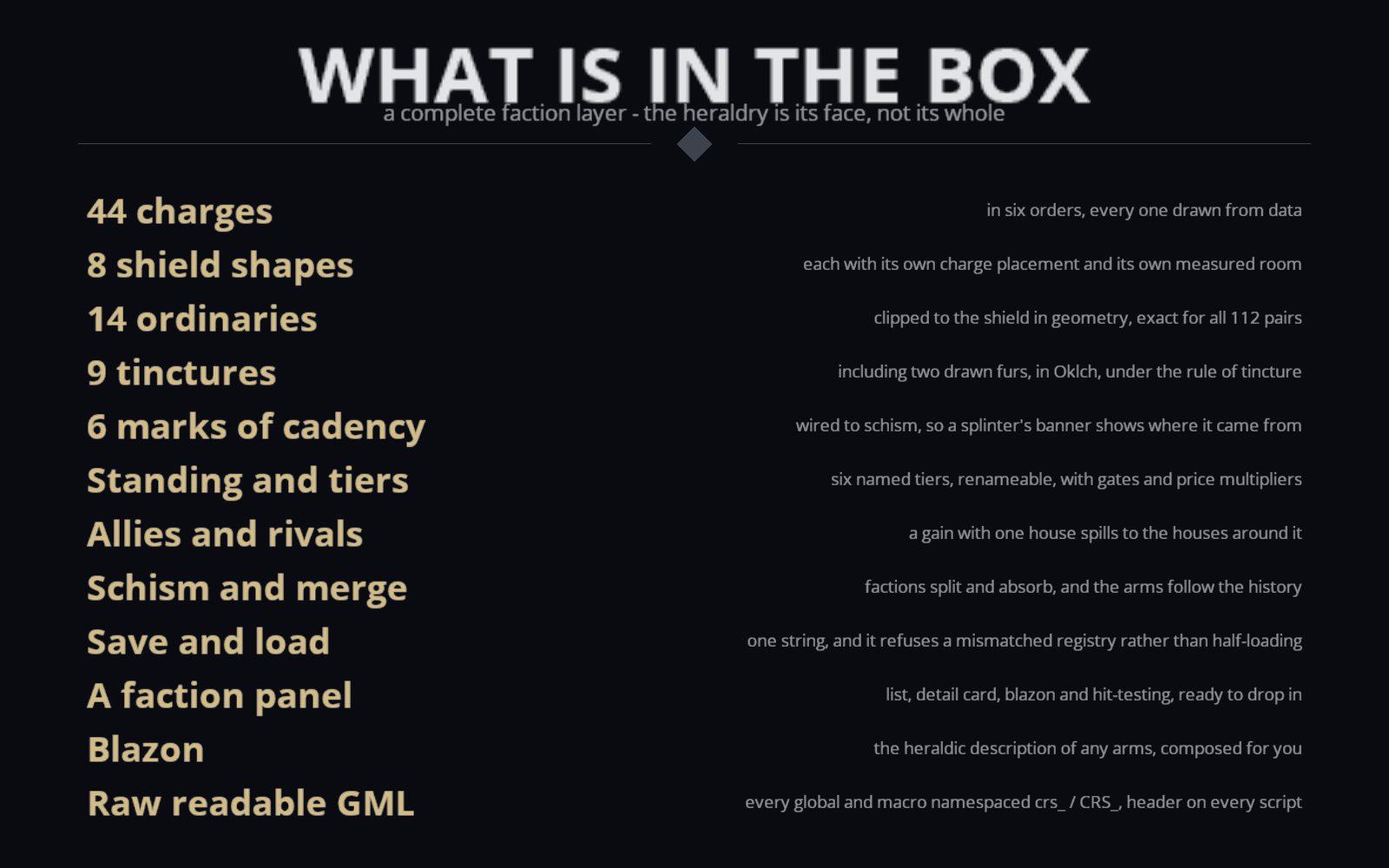

What is in the box

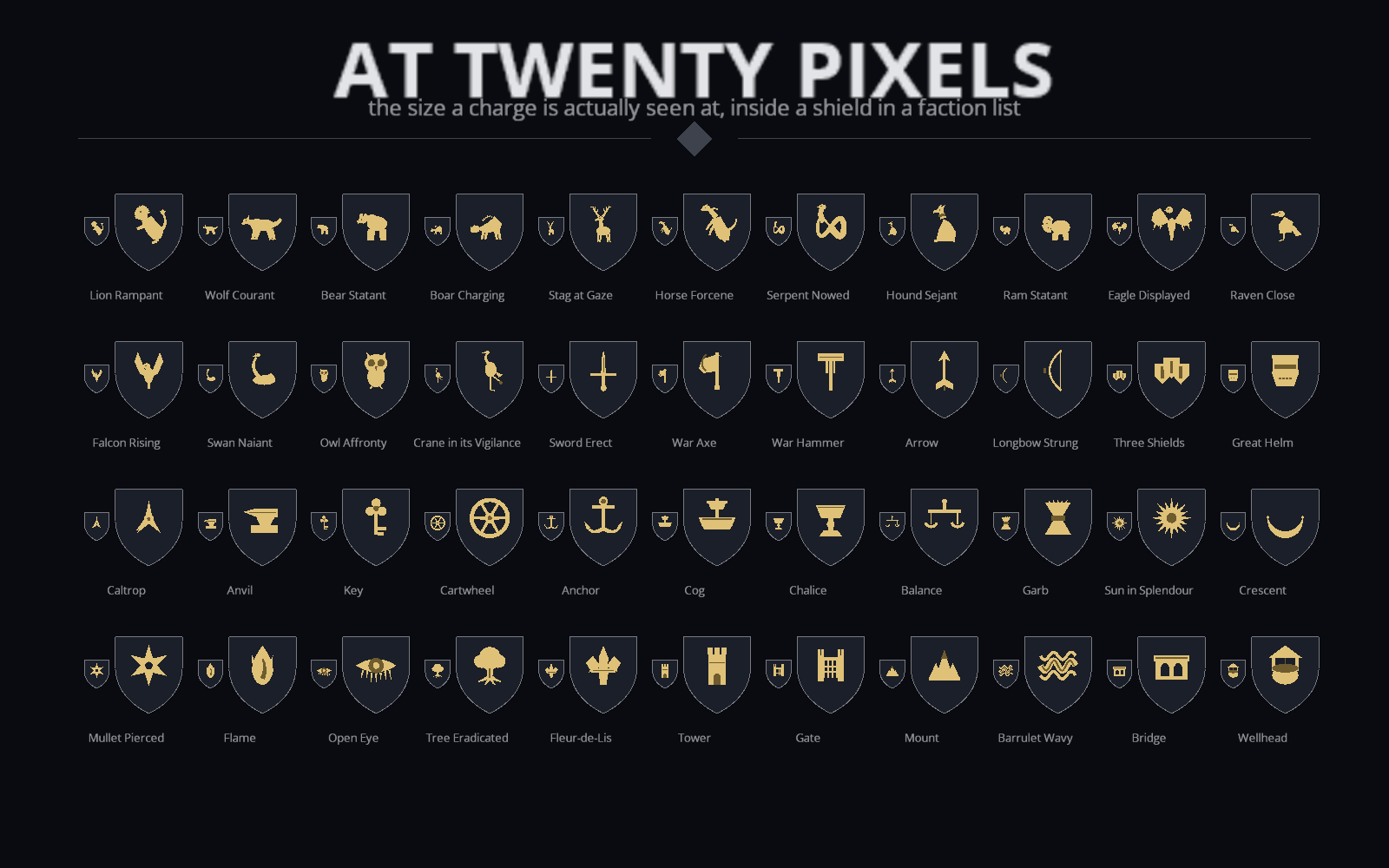

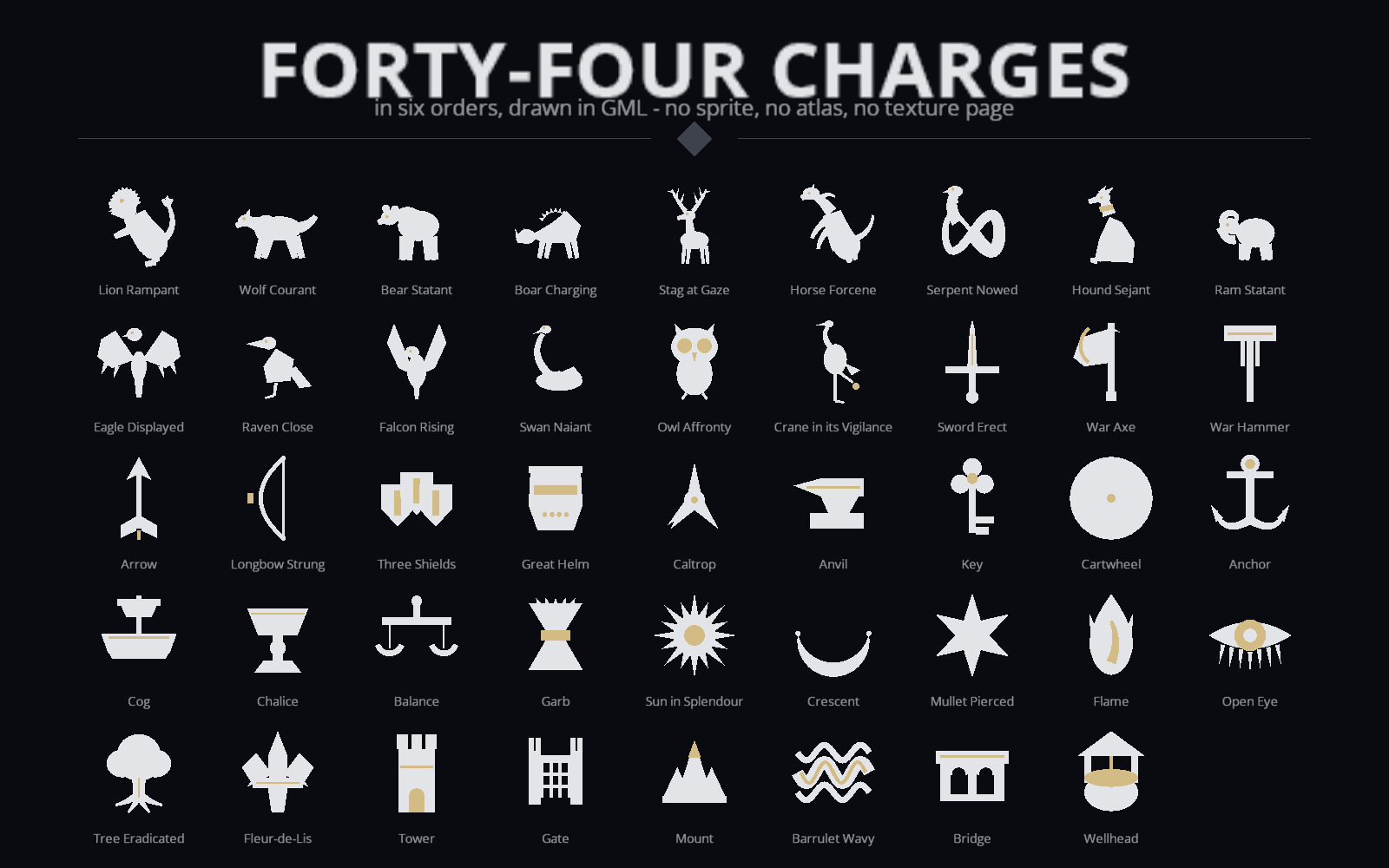

• 44 charges, hand-authored in six orders — beast 9 · bird 6 · arms 8 · craft 8 · sacred 7 · land 6. Every one drawn from geometry and tested for legibility at 20 pixels, the size a faction list actually renders it.

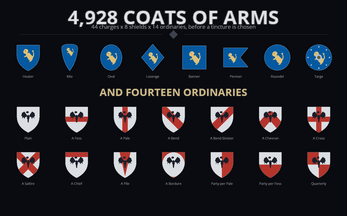

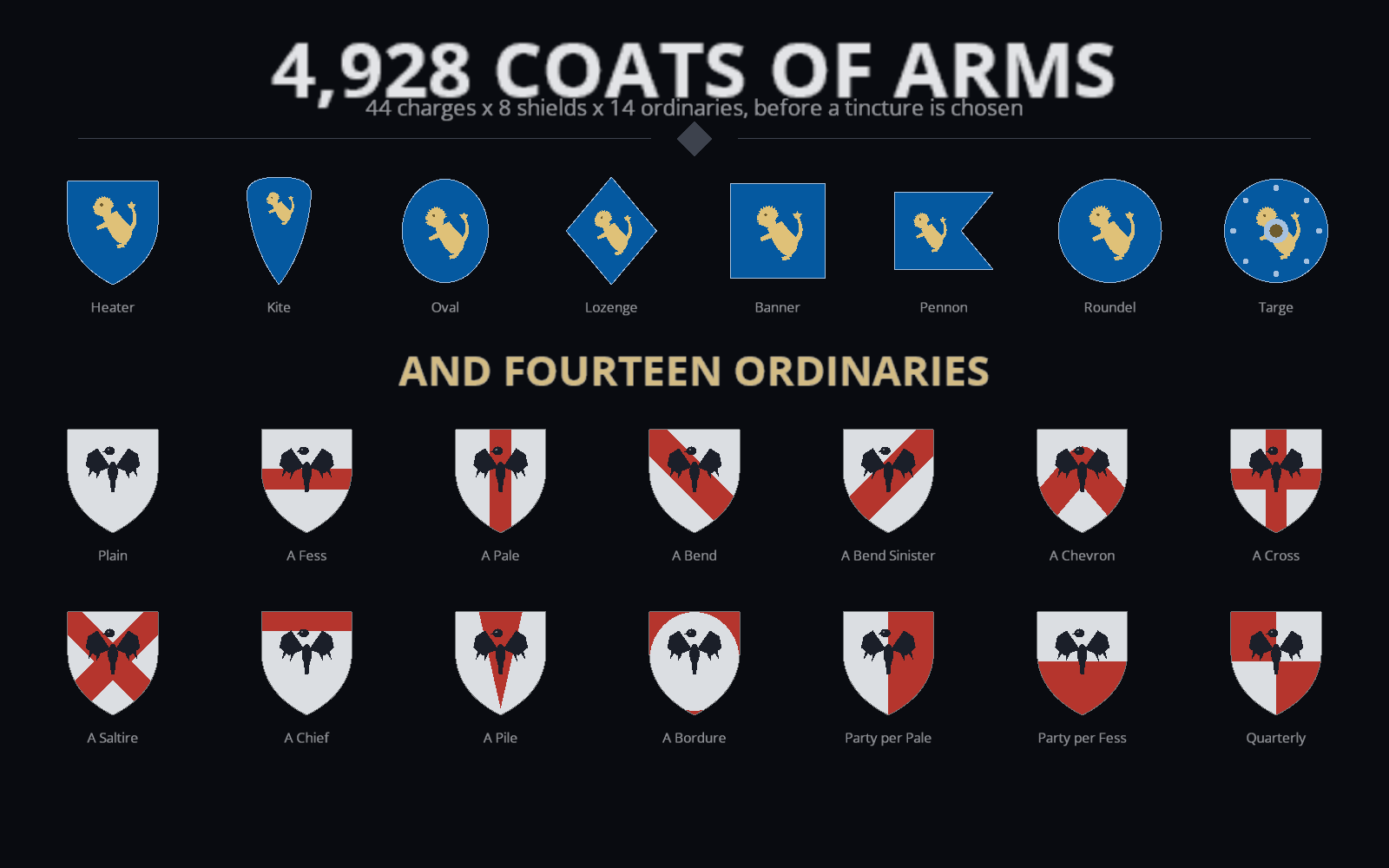

• 8 shield shapes — heater, kite, oval, lozenge, banner, pennon, roundel, targe — each with its own charge placement and its own measured room.
• 14 ordinaries and divisions, clipped to the shield in geometry rather than masked.
• 9 tinctures, including ermine and vair drawn as real patterns, computed in Oklch.
• 6 marks of cadency, wired to schism.

44 × 8 × 14 = 4,928 distinct shield layouts before a single tincture is chosen.

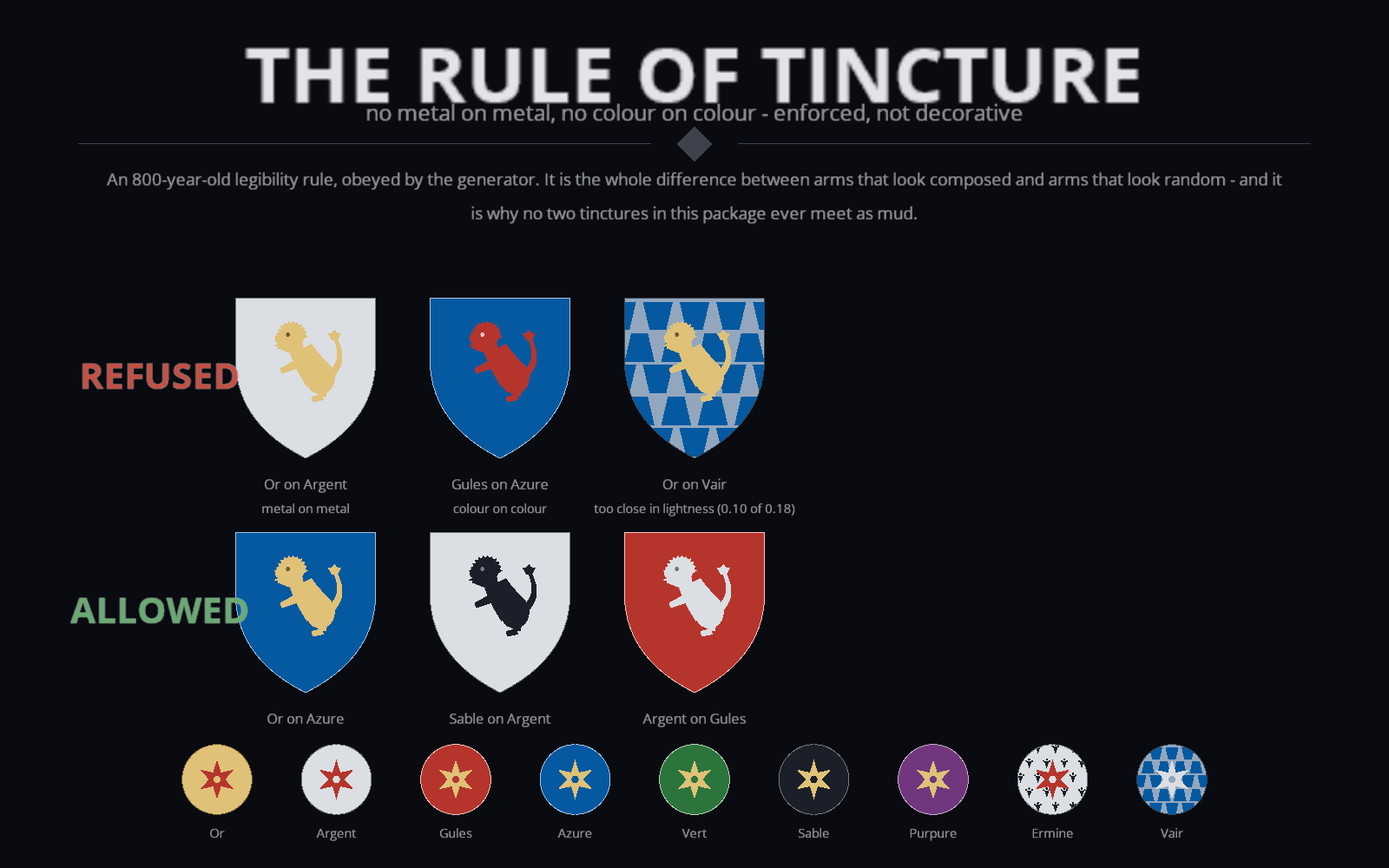

The rule of tincture, enforced rather than decorative

No metal on metal, no colour on colour — the 800-year-old legibility rule, obeyed by the generator itself. Crest never rolls a combination and retries; it picks each tincture from the set that is legal against what that element actually sits on. The in-engine suite derives 400 coats and asserts none breaks the rule, then asserts the rule itself still refuses metal-on-metal — because a check that can only say yes is not a check.

The system underneath

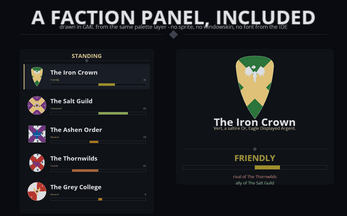

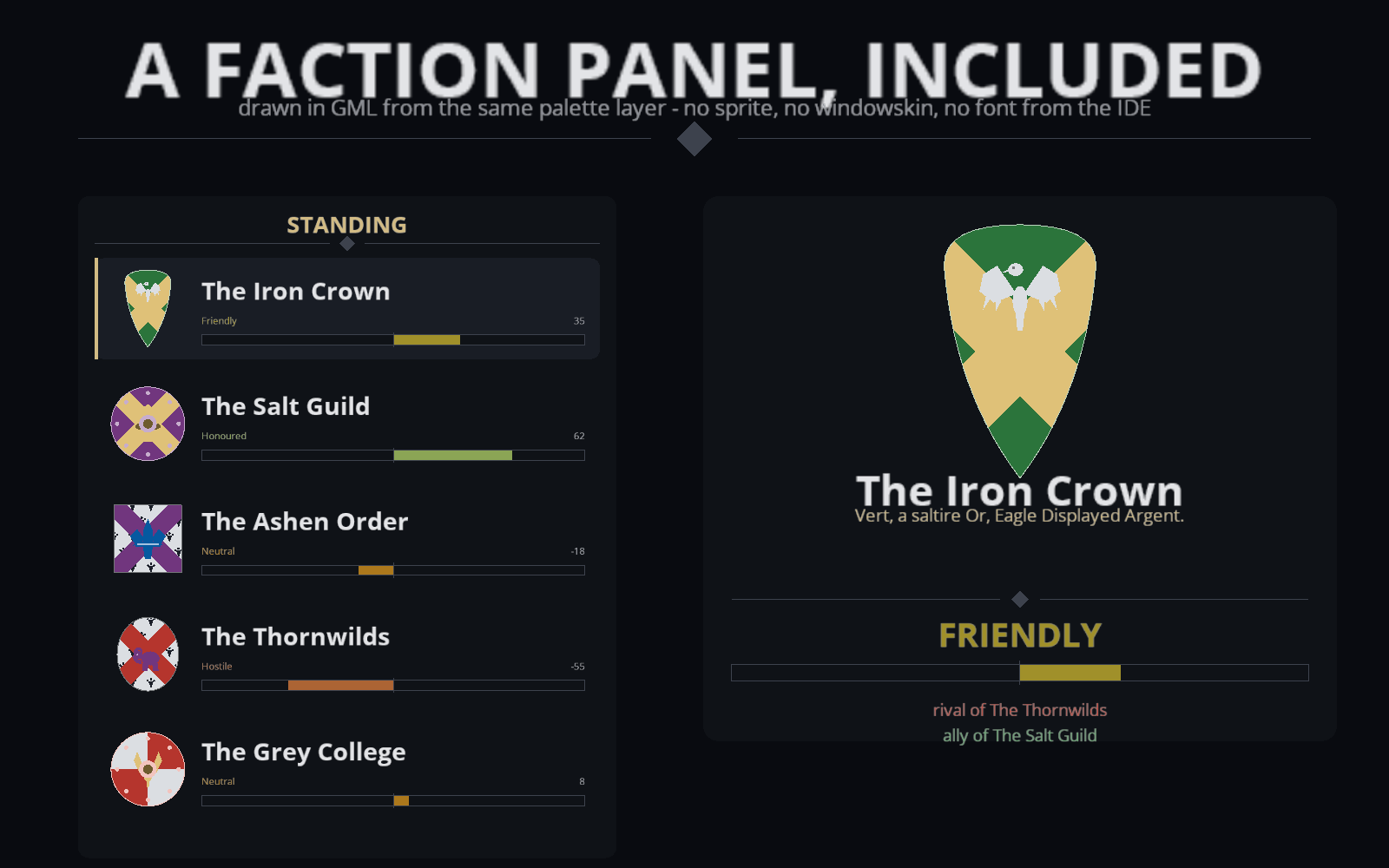

Standing from −100 to 100 · six named, renameable tiers · gates · shop price multipliers · tier-appropriate greetings · spill, so a gain with one house moves the houses around it · schism and merge, with the arms following the history · one-string save/load that refuses a mismatched registry rather than half-loading · and a faction panel — list, detail card, blazon, hit-testing — drawn in GML from the same palette layer.

crs_arms_blazon() returns the proper heraldic description of any arms; crs_arms_describe() returns the same thing in plain English; crs_arms_problem() tells you why a hand-written coat is illegal, in one call.

Compatibility and install

GameMaker 2024.14+. Built and verified against runtime 2024.14.4.268 by a real Igor package build. Pure GML — no extensions, no DLLs, nothing platform-specific.

1. Tools → Import Local Package, choose Crest.yymps, Add All.
2. Open rm_crest_demo and press Run.

Every function, macro and global is namespaced crs_ / CRS_, so it cannot collide with anything in your project. Every public script carries a header block. The source ships raw and readable because you are going to extend it.

In the demo: arrow up/down select a house · left/right move your standing · S splinter the selected house and watch the banner inherit · R reset.

Verified

1,405 in-engine assertions, run against a real compiled build — corpus counts, the 20px silhouette separation, per-shield geometry contracts, the rule of tincture over 400 derived coats, cadency placement, derivation stability and save/load round-trips.

Every image on this page was rendered by the product itself, by the shipped executable through the same functions you call.
